8-Port Gigabit Desktop Switch

Advance：

187*107*33mm

Overview

Specifications

Part Number

Download

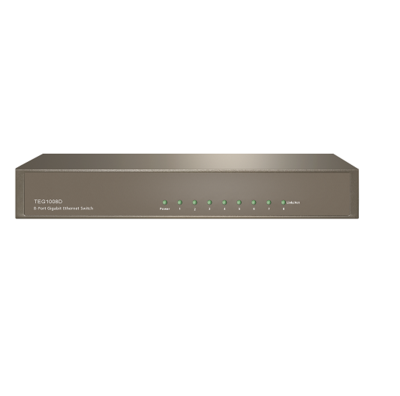

TEG1008D is an unmanaged gigabit switch with 8 10/100/1000Mbps auto-negotiation RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. TEG1008D supports 9k Jumbo Frame to increase the forwarding rate of large files in order to boost network performance . Lightning proof level is up to 4KV to ensure the stability and safety when you surf the internet. With bulit -in latest broadcom chip , fanless and greenlumi design , TEG1008D is the ideal choice for small & medium enterprises，schools , small offices to upgrade gigabit network.

Improve transmission efficiency

Support 9K jumbo Frame to speed up the transmission of large files and improve transmission efficiency.

loop prevention

Adopts advanced loop algorithm to prevent loop effectively.

Lightning – proof

Professional integrated lighting proof circuit with inductive lightning protection(≥4KV).

Specifications

Hardware Features	Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
	Interface	8*10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX)
	Transmission Media	10Base-T: Cat. 3 UTP or better 100Base-TX: Cat.5 UTP or better 1000Base-T: Cat.5e UTP or better
	Forwarding Speed	10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
	Power Supply	Input: AC:100-240V; 50/60Hz Output: 9.0V 1A ( External Power Adapter )
	Product Dimensions （LWH）	187mm×107mm×33 mm
	LEDs	1* Power, 8* Link/Act
	Switching Capacity	16Gbps
	MAC Address Table	4K
	Power Consumption	Maximum : 4.5W (220V)
Software Features	Transfer Method	Store and Forward
	Access Control	CDMA/CD
	MAC Address Learning	Automatic update
Others	Temperature	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃
	Humidity	Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
	Compatible OS	Windows 8 32/64 bit , Windows 7 32/64 bit , Windows xp 32/64 bit , Linux , MAC OS
	Package Contents	8-Port Gigabit Ethernet Switch Power Adapter (9V 1A) Quick Installation Guide
	Packing (Qty)	Package Size: 29820660mm Carton size: 611320226mm Packing number: 10 PCS
	Weight	NW/GW: 0.51KG / 0.78KG Carton Weight: 8.44KG

Interface	Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Auto tuning
Switch Properties	Mac address:8K Packet buffer:4M Switch time delay: <10us
Power	12~36VDC 5-pin 3.81mm-spacing plug-in terminal block Full load power consumption:<4W Reverse Connection Protection: Support Redundancy Protection: Support
Physical Characteristics	Housing: IP30, Metal, fanless Dimensions:41mm101mm87mm Weight:0.5kg Mounting: DIN-Rail or Panel mounting
LED Indicator	Power LED: PWR Interface LED: RJ45(Link&ACT) , Fiber(Link&ACT)
Industrial Standard	IEC61000-4-2 (ESD): level4 IEC61000-4-3(RS):level 3 IEC61000-4-4 (EFT): Power Port: level 4 IEC61000-4-5 (Surge): Power Port: level 4 IEC61000-4-6 (CS): 3V (10kHz-150kHz); level 3 IEC61000-4-16 (Common mode conduction): level 3
Machinery	IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall)
Certificate	CE, FCC, RoHS
MBTF	360000 hours
Warranty	3 years
Environmental Limits	Operating Temperature: -40 to 85°C Storage Temperature: -45 to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing)

Model	Description
YHS1108	8*10/100/1000Base-T (RJ45), Din-Rail, 12-36VDC power input, dual power supply
