R38 Embedded 4G industrial Router PCB is a multifunctional communication board product for the Internet of Things industry, with strong flexibility and high adaptability. Support P2P VPN communication protocol, realize the encryption of the data link, and the video transmission is more secure; third parties without access rights cannot steal the transmission data; support P2P hole drilling technology, data direct connection, transmission does not require a transfer server, and the cost of network penetration low. Easy to install and adapt to a variety of scenarios. Support Cat1 & Cat4 modules, lower power consumption and lower cost IOT devices to connect to LTE network. Convenient deployment, rapid deployment, low power consumption and high cost performance. Support integration with cameras, suitable for scenarios such as security solutions, smart transportation solutions, and smart energy solutions.
Specifications
Support transparent data transfer (DTU).
Dedicated software watchdog is designed to support system running reliable.
Support to reboot and configure the router via SMS.
ICMP detection and Heartbeat detection ensure the router to be always on line.
Support P2P VPN communication protocol to realize the encryption of data link.
Support P2P hole drilling technology, direct data connection, transmission does not require a transit server.
Support multiple encryption methods, access control (wireless blacklist) to ensure wireless connection security.
Hardware
CPU | FLASH / DDR | 16M/128M |
Network | CAT1, CAT4 |

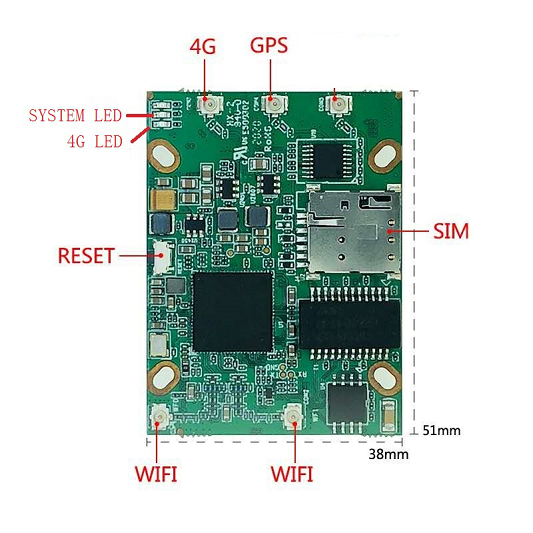

Interface | Antenna | 1*4G antenna 2*wifi antenna (option) 2*GPS/Bluetooth antenna(option) |
SIM card slot | 1 |
Reset button | 1 |

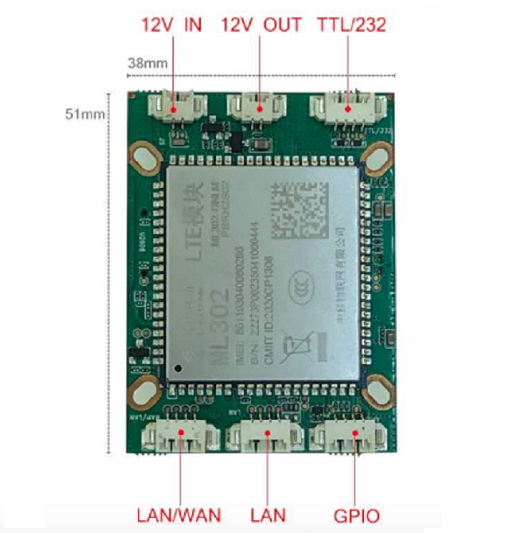

Power input | 2pin |
Serial port | 1*RS232 port |
Ethernet | 2*4 pin ethernet port |
Environment | Storage | -40°C ~ 85°C |
Humidity | 5 %~ 95% |
Work | -30°C ~ 75°C |
Volume | L*W*H | 51mm×38mm×8.2 mm |
