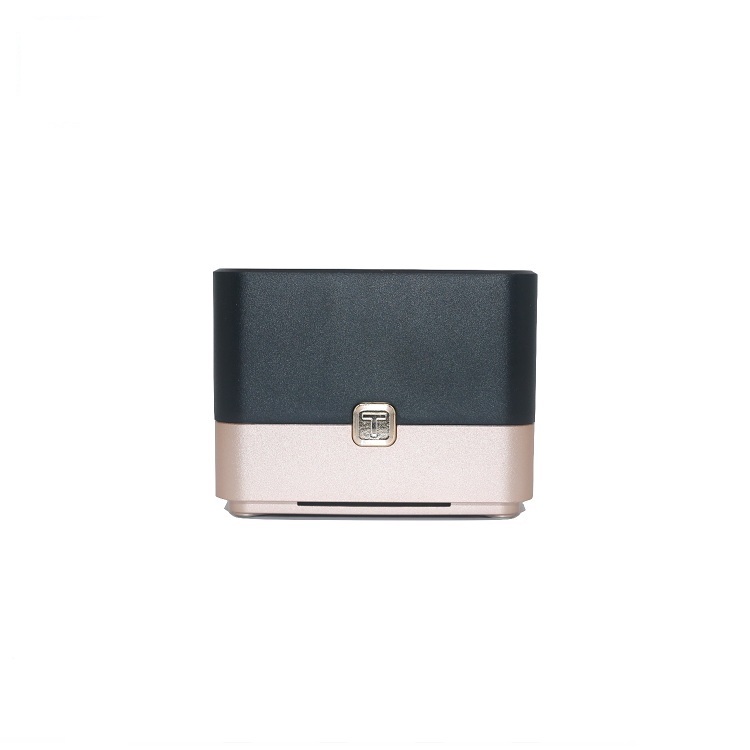

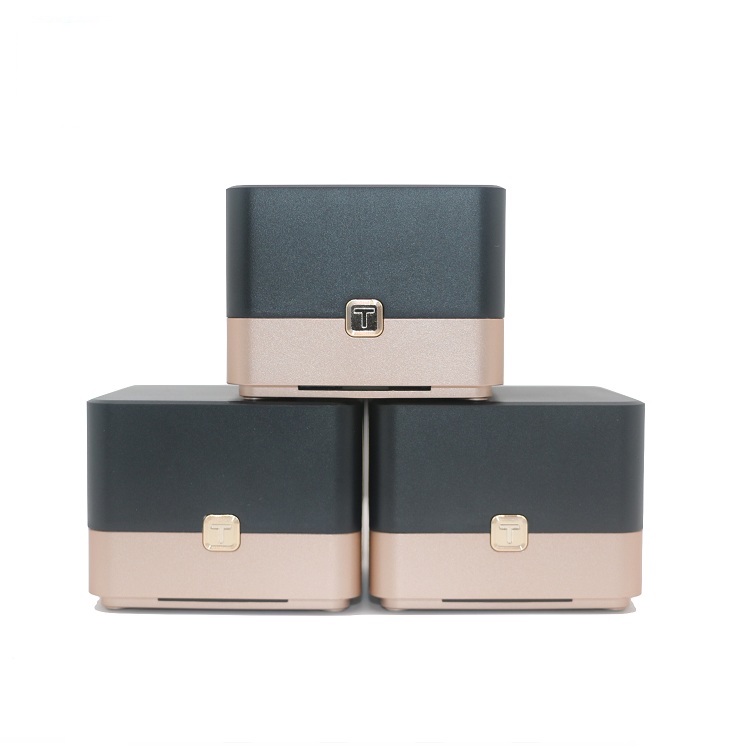

MR1200 is a smart networking device that allows you to establish intelligent wireless network via multiple devices simply by one touch. It complies with the latest IEEE 802.11ac wave2 Wi-Fi standard, delivering up to 300Mbps+867Mbps combined wireless speed. Built-in 1GHz processor provides powerful data handling capacity to improve Wi-Fi transfer efficiency. Meanwhile, the wireless roaming function helps exchange to better signal source, keeping you connected and enjoy high speed Wi-Fi throughout your house. Generally, MR1200 and the pack are designed for medium-size homes with increasing demand of wide Wi-Fi network.
Smart Mesh Networking by One Touch
Simply press the T button on the device, all the other MR1200 will be connected automatically to establish smart wireless network with wide coverage, meeting all your demand for Wi-Fi connection on multiple terminals.
Keep You Connected Throughout Your Home
MR1200 supports wireless roaming function, all the Wi-Fi devices will auto change to stronger signal source when you are moving, keeping you connected and enjoy seamless Wi-Fi at any corner of your house.
Extremely High Speed Experience
MR1200 adopts new 802.11ac technology and offers wireless speed up to 1167Mbps, optimized for music, HD video and online gaming.
MU-MIMO Technology
Coupled with a MU-MIMO adapter, the latest wireless-AC technology allows multiple devices share faster and stronger home Wi-Fi than normal 11ac routers at the same time.
Beamforming Technology for Focus Wi-Fi
Beamforming focuses Wi-Fi signal directly to all your connected smart phones, tablets and laptops, more efficient Wi-Fi network and wider coverage.
Simultaneous Dual Band
2.4GHz and 5GHz bands working concurrently make two separated Wi-Fi networks available for you to choose, of which the 2.4GHz Wi-Fi shows high compatibility and 5GHz band reduces interference, perfect for lag-free games and large-file downloading.
High Speed Internet Access

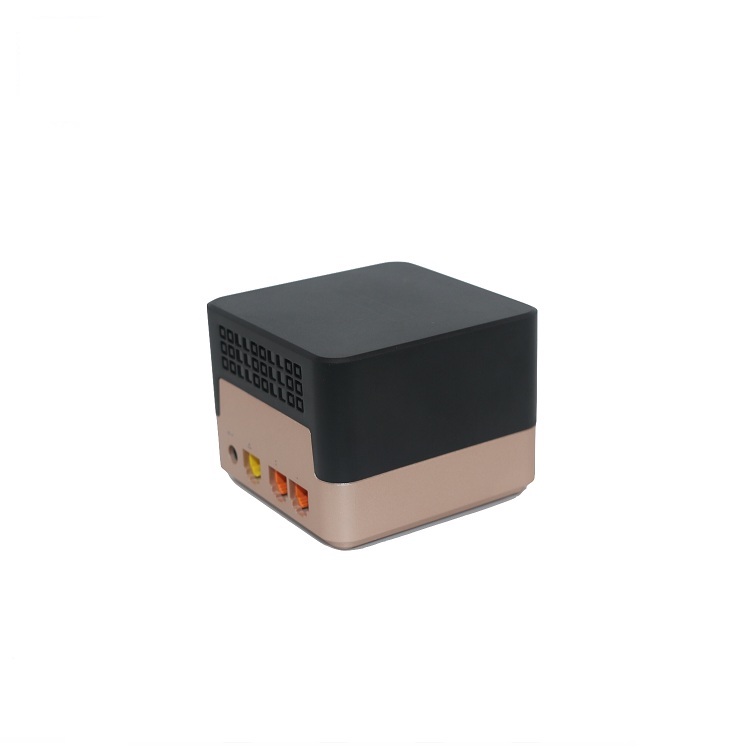

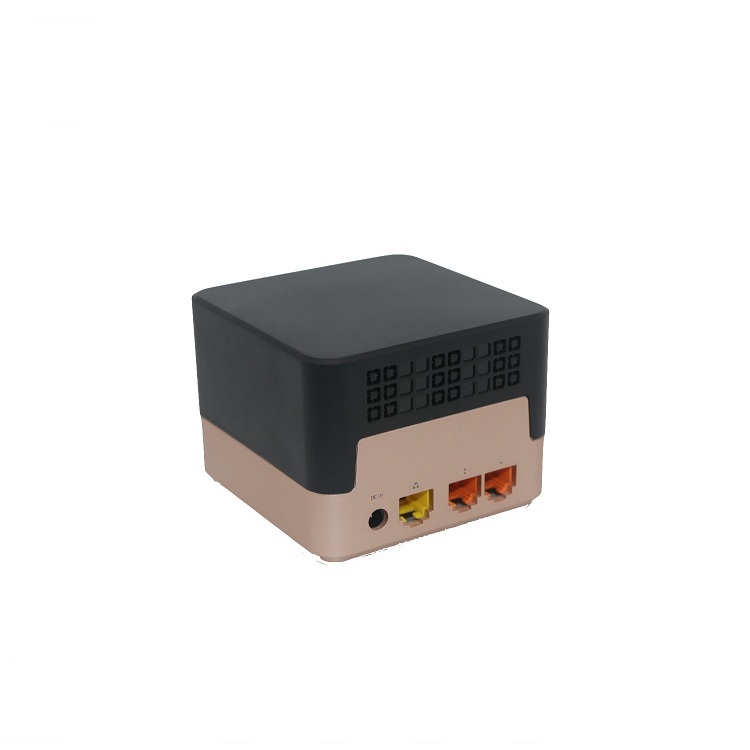

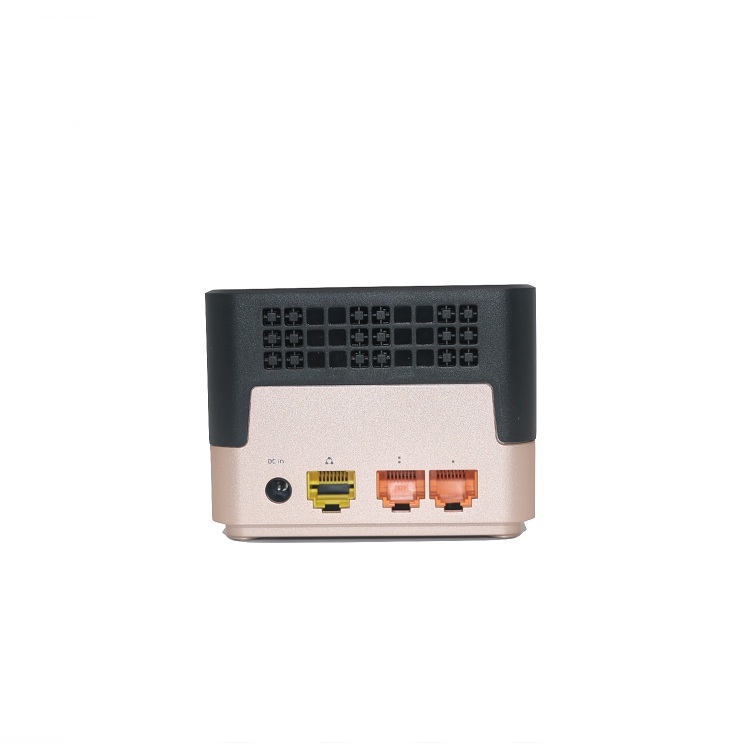

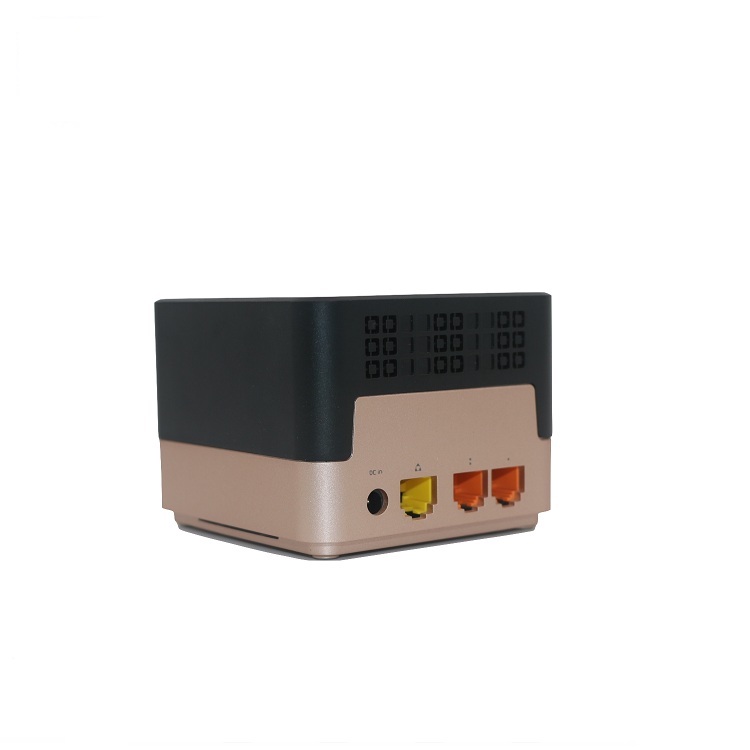

With one gigabit WAN port and two gigabit LAN ports, you are able to enjoy high speed Internet access and wired connection as well as fast Wi-Fi, making the best of bandwidth, ideal for homes having both wireless and wired connection needs.
Multiple Wireless Network for Access Control
More than one Wi-Fi networks can be added to provide secure Wi-Fi access for guest sharing your home or office network.
Features
1. Complies with new IEEE 802.11ac Wi-Fi standard.
2. 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1167Mbps simultaneously.
3. Smart Mesh networking with one touch.
4. Supports multiple devices extension for wide Wi-Fi coverage.
5. Wireless roaming helps users auto switch to stronger signal source.
6. Next-GEN MU-MIMO technology improves user experience comprehensively.
7. 1GHz processor provides powerful performance with low power consumption.
8. Intelligent Beamforming delivers highly targeted and efficient Wi-Fi connection.
9. Full gigabit WAN and LAN ensures high speed Internet access and wired speed.
10. Supports DHCP, Static IP and PPPoE broadband functions.
11. Provides 64/128-bit WEP, WPA, WPA2 and WPA/WPA2 (TKIP+AES) security.
12. Connects to secure network easily and fast using WPS.
13. QoS: Bandwidth Control based on IP address.
14. Classic white design with compact size.
Specifications
Hardware |
Interface | - 2 *1000Mbps LAN Ports - 1 *1000Mbps WAN Port |
Power Supply | - 12V DC / 1A |
Button | - 1 *Mesh/RST Button |
LED Indicators | - 1 *Status |
Antenna | - Internal Antennas |
Wireless |
Standards | - IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g ,IEEE 802.11n |
RF Frequency | - 2.4GHz/5GHz |
Data Rate | - 2.4GHz: Up to 300Mbps - 5GHz: Up to 867Mbps |
EIRP | - 2.4GHz < 22dBm |
- 5GHz < 20dBm |
Wireless Security | - 64/128-bit WEP, WPA, WPA2 and WPA-Mixed |
Reception Sensitivity | 2.4G: 11b: <-81dbm； 11g: <-68dbm； 11n: HT20<-65dbm HT40: <-62dbm 5G: 11a:<-68dbm； 11n: HT20<-65dbm HT40: <-62dbm 11ac: <-51dbm |
Software |
Operation Mode | - Wireless ISP Client Router - Wireless Client - Repeater(Range Extender) - Router - Bridge with AP - Client - Mesh Mode |
WAN Type | - DHCP/Static IP/PPPoE |
Wireless Functions | - Multiple SSID, MAC Authentication, Universal Repeater, WDS, WPS |
Schedule | - Reboot Schedule, Wireless Schedule |
Firewall | - MAC Filtering, IP Filtering, Port Filtering, URL Filtering Port Forwarding, DMZ |
Management | - QoS, DDNS, DoS, WMM, Access Control, etc. |
Others |
Package Contents | - MR1200 Wireless Router *1 - Power Adapter *1 - Ethernet Cable *1 - Quick Installation Guide *1 Remark：The product is 3 in1 package, above is single product specifications |
Environment | - Operating Temperature: 0℃~50℃ (32 ℉~122℉) - Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~90% non-condensing |
