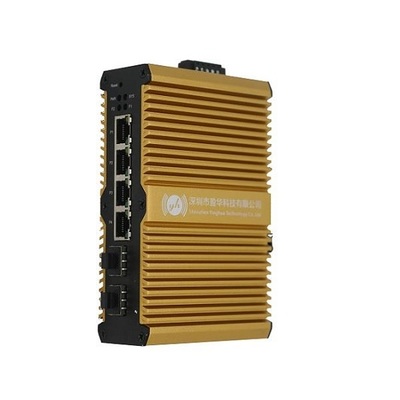

Layer 2 Managed POE Switch

Advance：	Industrial Layer 2 Gigabit Switch
I：	4 x RJ45, 10/100/1000 Mbit/s
II：	2 x 100/1000 Mbit/s, SFP transceivers supported, Ethernet FX (LC)
III：	Ultra-robust IP40 metal housing
IV：	-40 to +85°C without ventilation holes
V：	2 independent power supply circuits, to ensure the device works well even if one of the power supplies breaks down.
VI：	DIN-Rail mounting to meet different requirements
VII：	Supports various network protocols and industrial standards

Overview

Specifications

Part Number

Download

YHS2106 is full Gigabit layer 2 managed industrial Ethernet switches. It provides 4 Gigabit copper port and 2 Gigabit SFP slot. It adopts DIN-Rail mounting to meet different requirements. Network management system supports various network protocols and industrial standards, such as STP/RSTP/MSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, ACL, etc.

The switch uses 2 independent power supply circuits, to ensure the device works well even if one of the power supplies breaks down. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

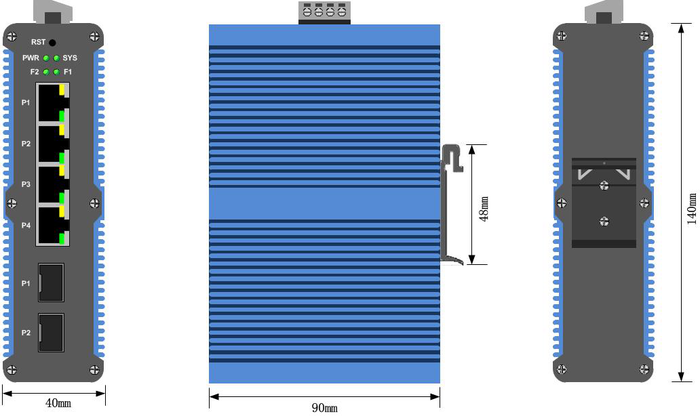

POE switch.png

Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-Tx IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3x for flow control IEEE 802.1D for spanning tree protocol IEEE 802.1w for rapid spanning tree protocol IEEE 802.1s for multiple spanning tree protocol IEEE 802.1Q for VLAN
Management	SNMP v1/v2c/v3 centralized management for equipment WEB
Switch Function	802.1Q Vlan, Static or Dynamic port aggregation, Bandwidth management, Flow control, Port Isolation
Unicast / Multicast	Static multicast, GMRP, IGMP-Snooping
Redundancy Protocol	RSTP
VLAN	Access/Trunk/Hybrid
Interface	Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Auto tuning SFP slot: 1000Base-SFP
Switch Properties	Forward frame length:9K byte at most Mac address:8K Packet buffer:4M Switch time delay: <10us
Power	12~36VDC 5-pin 3.81mm-spacing plug-in terminal block Full load power consumption:<4W Reverse Connection Protection: Support Redundancy Protection: Support
Physical Characteristics	Housing: IP30, Metal, fanless Dimensions:40mm140mm90mm Weight:0.5kg Mounting: DIN-Rail or Panel mounting
LED Indicator	Power LED: PWR Interface LED: RJ45(Link&ACT) , Fiber(Link&ACT)
Industrial Standard	IEC61000-4-2 (ESD): level4 IEC61000-4-3(RS):level 3 IEC61000-4-4 (EFT): Power Port: level 4 IEC61000-4-5 (Surge): Power Port: level 4 IEC61000-4-6 (CS): 3V (10kHz-150kHz); level 3 IEC61000-4-16 (Common mode conduction): level 3
Machinery	IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall)
Certificate	CE, FCC, RoHS
MBTF	360000 hours
Warranty	3 years
Environmental Limits	Operating Temperature: -40 to 85°C Storage Temperature: -45 to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing)

Model	Description
YHS2106-4PGE2GF-TY-DC	410/100/1000Base-T ( RJ45, IEEE 802.3.af/at 15.4/30W POE) + 21000Base-X (SFP, not include SFP module), industrial L2 Ethernet Switch, WEB management , Din-Rail, 44-56VDC power input, dual power supply
YHS2106-4GE2GF-TY-DC	410/100/1000Base-T (RJ45) + 21000Base-X (SFP, not include SFP module), industrial L2 Ethernet Switch, WEB management , Din-Rail, 12-36VDC power input, dual power supply

Standards	IEEE 802.3 10Base-T IEEE 802.3u 100Base-Tx IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3x for flow control IEEE 802.1D for spanning tree protocol IEEE 802.1w for rapid spanning tree protocol IEEE 802.1s for multiple spanning tree protocol IEEE 802.1Q for VLAN
Management	SNMP v1/v2c/v3 centralized management for equipment WEB
Switch Function	802.1Q Vlan, Static or Dynamic port aggregation, Bandwidth management, Flow control, Port Isolation
Unicast / Multicast	Static multicast, GMRP, IGMP-Snooping
Redundancy Protocol	RSTP
VLAN	Access/Trunk/Hybrid
Interface	Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Auto tuning SFP slot: 1000Base-SFP
Switch Properties	Forward frame length:9K byte at most Mac address:8K Packet buffer:4M Switch time delay: <10us
Power	12~36VDC 5-pin 3.81mm-spacing plug-in terminal block Full load power consumption:<4W Reverse Connection Protection: Support Redundancy Protection: Support
Physical Characteristics	Housing: IP30, Metal, fanless Dimensions:40mm140mm90mm Weight:0.5kg Mounting: DIN-Rail or Panel mounting
LED Indicator	Power LED: PWR Interface LED: RJ45(Link&ACT) , Fiber(Link&ACT)
Industrial Standard	IEC61000-4-2 (ESD): level4 IEC61000-4-3(RS):level 3 IEC61000-4-4 (EFT): Power Port: level 4 IEC61000-4-5 (Surge): Power Port: level 4 IEC61000-4-6 (CS): 3V (10kHz-150kHz); level 3 IEC61000-4-16 (Common mode conduction): level 3
Machinery	IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall)
Certificate	CE, FCC, RoHS
MBTF	360000 hours
Warranty	3 years
Environmental Limits	Operating Temperature: -40 to 85°C Storage Temperature: -45 to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing)

Model	Description
YHS2106-4PGE2GF-TY-DC	410/100/1000Base-T ( RJ45, IEEE 802.3.af/at 15.4/30W POE) + 21000Base-X (SFP, not include SFP module), industrial L2 Ethernet Switch, WEB management , Din-Rail, 44-56VDC power input, dual power supply
YHS2106-4GE2GF-TY-DC	410/100/1000Base-T (RJ45) + 21000Base-X (SFP, not include SFP module), industrial L2 Ethernet Switch, WEB management , Din-Rail, 12-36VDC power input, dual power supply
