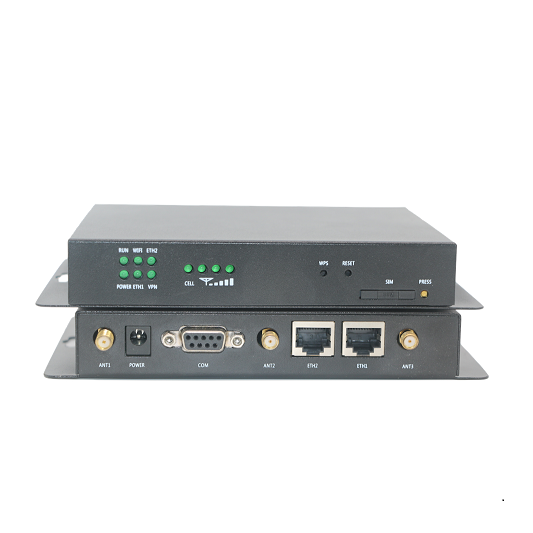

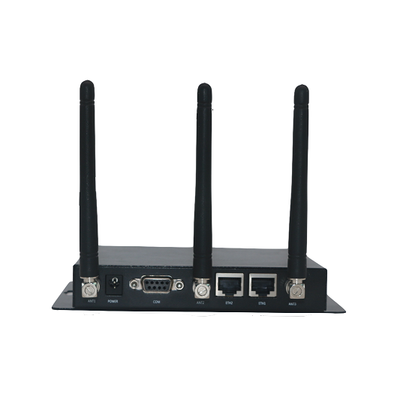

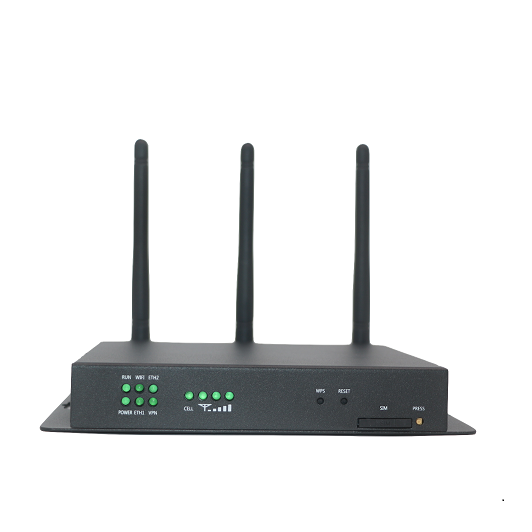

4G CAT1 Industrial Router

Advance：	Compared with Teltonika, Westermo, Digi, our 4g router has a much competitive price with excellent stability.
I：	Support public and private APN settings to work with different ISP SIM card.
II：	Dedicated hardware and software watchdog are designed to support system running reliable.
III：	VPN Firewall offers connectivity, security and remote access to both local and remote clients.
IV：	Full support for IPV4 and IPV6 network technology.
V：	Detects a network problem and fails over to a standby 5G/4G, ensuring the customer’s SLAs are upheld.
VI：	Free service to monitor, configure and control all terminals via Cloud
VII：	2 Ethernet Ports, 4G LTE and WiFi connectivity.
VIII：	9-36V DC power supply, Low-voltage, over current, over voltage, anti-reverse protection
IX：	IEEE 802.11b/g/n WIFI, Access Point (AP), Up to 30 simultaneous connections
X：	Widely used in Smart Energy, Agriculture, Traffic, Finance, Bus WIFI and other IoT projects.

Overview

Specifications

Part Number

Download

MOBILE
Mobile module	4G (LTE) – Cat 1 up to 10 Mbps downlink, 5Mbps uplink
Status	Signal strength (RSSI), Attached network, IMSI, ICCID
APN	Auto APN, Customized APN
WIRELESS
Wireless mode	IEEE 802.11b/g/n, Access Point (AP)
WiFi security	WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID	SSID stealth mode and access control based on MAC address
WiFi users	Up to 30 simultaneous connections
PHYSICAL INTERFACE
WAN	1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN	1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Serial	1 x RS232/RS485 DB9 port (2-Tx, 3-Rx, 5-GND)
SIM	1 Standard SIM card slot,1.8 V/3 V, external SIM holder
Antenna	2 x SMA for LTE, 1 x SMA for WiFi antenna connectors
LED	3 x Signal strength LEDs, 2 x Ethernet status LEDs, 1 x Run status LED,1 x Power LED,1 x VPN status LED, 1 x WIFI status LED
Reset	Reboot/Factory reset button
NETWORK
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6)
Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP
Connection monitoring	Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forwarding
DHCP	Static and dynamic IP allocation, DHCP Relay
QoS	Traffic priority queuing by source/destination, service, protocol or port
DDNS	Supported >25 service providers, others can be configured manually
Network backup	VRRP, Mobile and Wired, each of which can be used as backup, using automatic failover
SECURITY
Attack prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention)
VLAN	Port and tag based VLAN separation
WEB filter	Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control	Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN	Multiple clients can be running simultaneously, 10 encryption methods
OpenVPN Encryption	DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec	IKEv1, IKEv2, supports up to 10 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE	GRE tunnel
PPTP, L2TP	Client/Server services can run simultaneously
Serial transmission
TCP/UDP server
Parameters	Port, Baud rate, Parity, Data bits, Stop bits, Flow control
TCP/UDP client
Parameters	Port, Baud rate, Parity, Data bits, Stop bits, Flow control, Heartbeat
Data center	Supported 4 server run simultaneously
MONITORING & MANAGEMENT
WEB UI	HTTP, status, configuration, FW update,troubleshoot, event log, system log, kernel log
FOTA	Firmware update from sever, automatic notification
SNMP	SNMP (v1, v2, v3)
IoT PLATFORMS
Cloud of Things	Allows monitoring Network info, Availability
Configure	Configure parameters, Update firmware
SYSTEM CHARACTERISTICS
CPU	Broadcom, 600 MHz
RAM	64 MB, DDR2
FLASH storage	16 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI	Update FW from file, check FW on cloud, configuration backup and restore
FOTA	Update FW/configuration from cloud platform
RMS	Update FW/configuration for multiple devices
Keep settings	Update FW without losing current configuration
POWER
Connector	1 industrial DC power socket
Input voltage range	9 – 36 VDC, reverse polarity protection, surge protection
PoE (Option)	Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt
Power consumption	< 5 W Max
PHYSICAL SPECIFICATION
Casing material	Metal housing
Dimensions (W x H x D)	165 x 116 x 24 mm
Weight	110 g
OPERATING ENVIRONMENT
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
REGULATORY & TYPE APPROVALS
Regulatory	CE, FCC, CCC
EMI IMMUNITY
Standards	Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0 FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014)
ESD	EN61000-4-2:2009
RS	EN 61000-4-3:2006 + A1:2008 + A2:2010
EFT	EN 61000-4-4:2012
Surge immunity (AC Power Line)	EN 61000-4-5:2006
Surge immunity (Ethernet ports)	EN 61000-4-5:2014, clause 7.1 of ITU-T K21
CS	EN 61000-4-6:2009
DIP	EN 61000-4-11:2004
RF
Standards	EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1 FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017) RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1 AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017

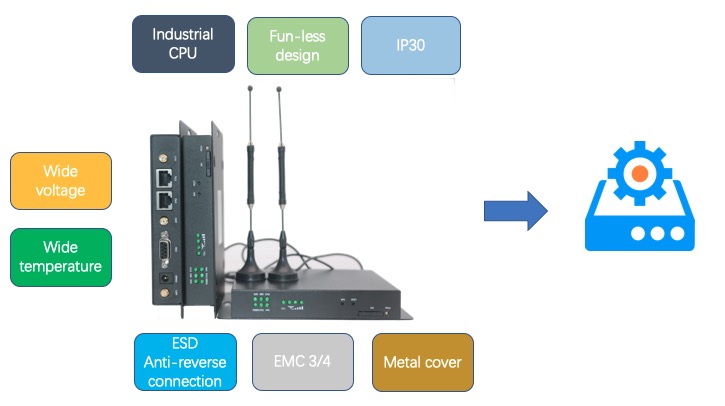

Main Features

Hardware Specifications

● Support public and private APN network

● ADSL(WAN port supports PPPOE, DHCP, Static IP) and 3G/4G backup. The router detects a network problem and fails over to a standby 3G/4G, ensuring the customer’s SLAs are upheld.

● Dedicated hardware and software watchdog are designed to support system running reliable.

● ICMP detection and Heartbeat detection ensure the router to be always on line.

● Full support for IPV4 and IPV6 network technology.

● Reboot the router remotely via SMS.

● Offers business grade security and advanced routing features IPSec (3Des and AES), L2TP, PPTP, GRE as standard.

● Incorporate Virtual Router Redundancy Protocol (VRRP), facilitating 3G/4G WAN backup services to existing fixed line routers, providing both WAN and router redundancy to critical business applications.

● Low-voltage, over current, over voltage, anti-reverse protection

● Wide Power Input DC7-36V

● Standard RS232/485 interface to connect with serial devices.

● Router Factory Default Settings can be configured freely.

● System logs can be viewed from local or remote.

● Support WLAN(300Mbps 802.11b/g/n).

● Support SNMP v1/v2/v3.

● Support IP, MAC, URL filtering

● NAT and QOS are supported

● Support static, dynamic, and policy-based routing strategy

● LEDS for status monitoring (showing Power, System, Internet, VPN, Signal strength).

● Supports NTP client synchronization network time and provides NTP network time.

● Support router local WEB access control.

CPU

● RAM:512Mbit FLASH:128Mbit

Power input

● Input DC 7-36V(Standard DC12V)

Environment

● Storage temperature：-40℃～80℃

● Work temperature：-35℃～75℃

● Humidity：<95%

Dimension

● Unit size L*W*H：165*116.2*23.8mm

● Metal Shell, IP30

● Package weight:830g

Interface

● 1 SIM card slot

● 1 WAN/LAN 10/100Mb RJ45 port

● 1 LAN 10/100Mb RJ45 port

● 1 RS232 or RS485 serial port

Antenna(female)

● ANT1 for Cellular

● ANT2, 3 for WiFi

EMC test

● Electrostatic discharge immunity：EN6100-4-2, level 2

● RFEMS：EN6100-4-3, level 2

● Surge：EN6100-4-3, level 2

● PFMF：EN6100-4-6, level 2

● Shockwave immunity：EN6100-4-8, Horizontal / vertical direction 400A/m(>level 2)

Physical property

● Shockproof：IEC60068-2-27

● Drop test：IEC60068-2-32

● Vibration test：IEC60068-2-6

Model

Frequency & Band

Bandwidth(UL/DL)

Consumption

WiFi (-W)

Serial(-S)

R28A

(America network)

● FDD-LTE: 1900MHz(B2), AWS(B4), 700MHz(B12)
● UMTS/HSPA+: 1900MHz(B2), 1700MHz(B4), 850MHz(B5)

5Mbps/10Mbps

Work:0.36A@12V DC

Peak:0.48A@12V DC

Option

-S2--RS232

-S4--RS485

R28C

(Asia network)

● FDD-LTE: 2100MHz(B1), 1800MHz(B3), 900MHz(B8)

● TDD-LTE: 2600MHz(B38), 1900MHz(B39), 2300MHz(B40), 2500MHz(B41)
● UMTS/HSPA+: 2100MHz(B1), 850MHz(B5), 900MHz(B8), 1800MHz(B9)

● TD-SCDMA: B34, B39

5Mbps/10Mbps

Work:0.31A@12V DC

Peak:0.40A@12V DC

R28E (Europe & Asia network)

● FDD-LTE: 2100MHz(B1), 1800MHz(B3), 850MHz(B5), 2600MHz(B7), 900MHz(B8), 800MHz(B20)

● TDD-LTE: 2600MHz(B38), 1900MHz(B39), 2300MHz(B40), 2500MHz(B41)
● UMTS/HSPA+: 2100MHz(B1), 1900MHz(B2), 850MHz(B5), 800MHz(B6), 900MHz(B8),

5Mbps/10Mbps

Work:0.31A@12V DC

Peak:0.40A@12V DC

R28G

(Australia,Latin America)

● FDD-LTE: 2100MHz(B1),1900MHz(B2), 1800MHz(B3), AWS(B4), 850MHz(B5), 2600MHz(B7),900MHz(B8), 700MHz(B28),

● TDD-LTE: 2300MHz(B40)
● UMTS/HSPA+: 2100MHz(B1), 1900MHz(B2), 850MHz(B5), 900MHz(B8)

5Mbps/10Mbps

Work:0.31A@12V DC

Peak:0.40A@12V DC
